High Lumen Edge-lit Panel Light

New EPREL2.0 “C”,High Luminous Efficiency-up To 150lm/w.Matched super high-efficiency LED driver,flicker free,PF>0.9Goodheat dissipation design for higher illumination.Better technological design,no yellowing and uniform illumination.High-hardness frame made by aluminum alloy.Anti-glare,energy saving,long lifetime 50000 hours,easier installation.CRI>80,SDCM<5,UGR<19.
  • Description
  • New EPREL2.0 “C”,High Luminous Efficiency-up To 150lm/w.

  • Matched super high-efficiency LED driver,flicker free,PF>0.9

  • Goodheat dissipation design for higher illumination.

  • Better technological design,no yellowing and uniform illumination.

  • High-hardness frame made by aluminum alloy.

  • Anti-glare,energy saving,long lifetime 50000 hours,easier installation.

  • CRI>80,SDCM<5,UGR<19.

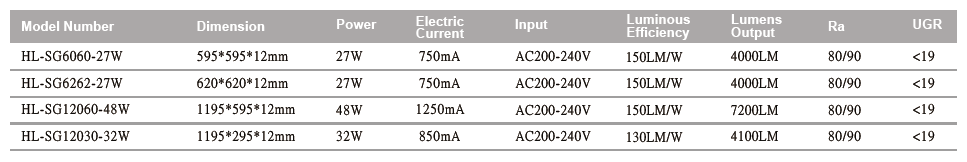

Photoelectric

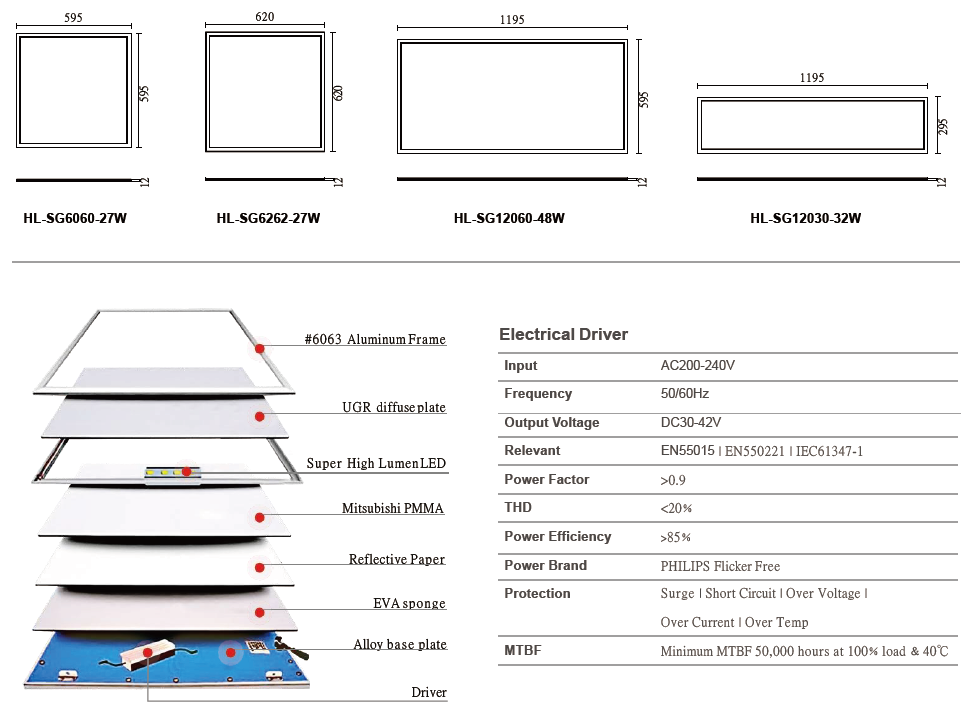

image.pngDimension

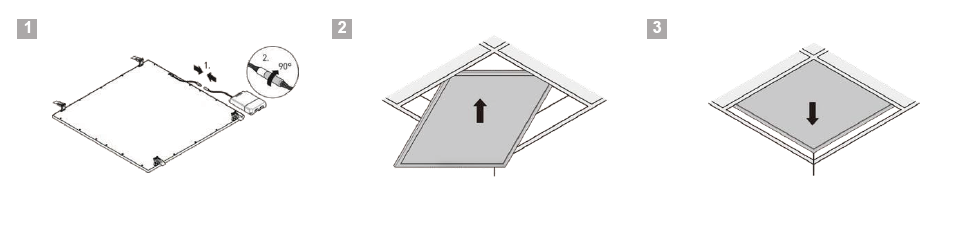

image.pngInstallation
